Havoc Road-Lock AD300.2 Saddlebag Amplifier System

SKU: ROADLOCK-300.2
Amplifier: Aquatic AV AD300.2
Output: Up to 300 Watts RMS
Channels: 2

The Havoc Road-Lock AD300.2 is a complete saddlebag amplifier system for Harley-Davidson Touring motorcycles. Built around the compact Aquatic AV AD300.2 digital amplifier, it provides a purpose-built solution for riders who want serious amplification without improvising an installation from universal brackets, loose wiring and mismatched components.

Everything in the system is selected to work together. The amplifier mounts securely to the Havoc Road-Lock saddlebag bracket, while the included marine-grade wiring harness, signal cables, trigger wire and mounting hardware provide the components needed for a clean, organized installation.

Two Channels. One Job. Done Properly.

The AD300.2 is a two-channel amplifier — and this system is designed around powering one dedicated left/right speaker pair.

It is an excellent choice for a pair of saddlebag lid speakers, lower fairing speakers, highway bar speakers or another dedicated two-speaker addition to your Harley-Davidson Touring audio system.

At 4 ohms, the AD300.2 delivers 100 watts RMS per channel. At 2 ohms, it delivers 150 watts RMS per channel. That makes it an excellent way to give one pair of quality speakers substantially more clean power than a head unit can provide.

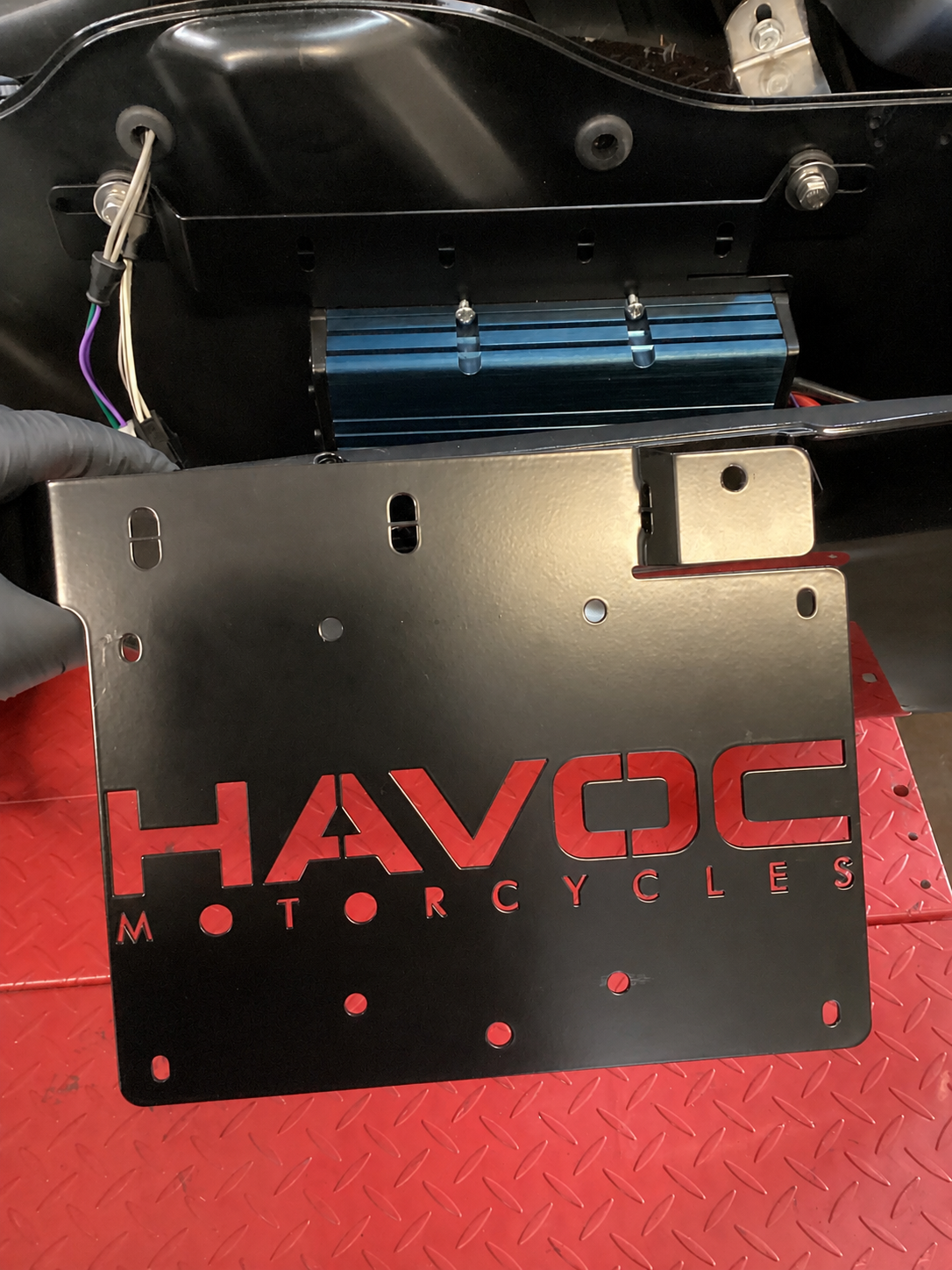

A Purpose-Built Saddlebag Amplifier System

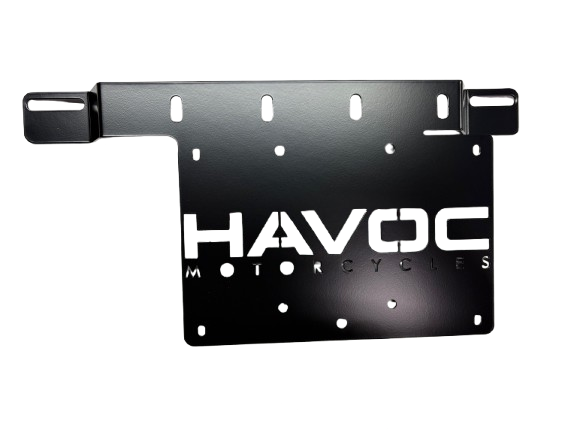

A saddlebag amplifier needs a rigid mount that keeps the amplifier secure under vibration while keeping the installation organized. The Havoc Road-Lock Saddlebag Amplifier Bracket is CNC-bent and laser-cut from 14-gauge steel and built specifically for the Aquatic AV amplifier.

The laser-cut Havoc logo also opens airflow behind the amplifier to support heat management while giving the installation a clean, finished appearance.

The included stainless security hardware provides an additional theft-deterrent upgrade for Touring saddlebags using quick-release quarter-turn-style fasteners, helping to discourage opportunistic removal of a saddlebag carrying valuable audio equipment.

Intelligent Cable Management

A saddlebag amplifier installation should not leave a bundle of power, signal and speaker cables lying across the bottom of the bag.

The Havoc Road-Lock bracket incorporates intelligent cable management at the top of the amplifier mount, providing a dedicated area to route and secure the amplifier wiring. This keeps the cable connections organized above the floor of the saddlebag rather than allowing wires to hang beneath the amplifier or become buried underneath whatever you carry in the bag.

Power, ground, RCA, trigger and amplifier wiring can be routed neatly through the upper cable-management area, helping to keep cables off the bottom of the saddlebag, protected from damage and out of your usable storage space.

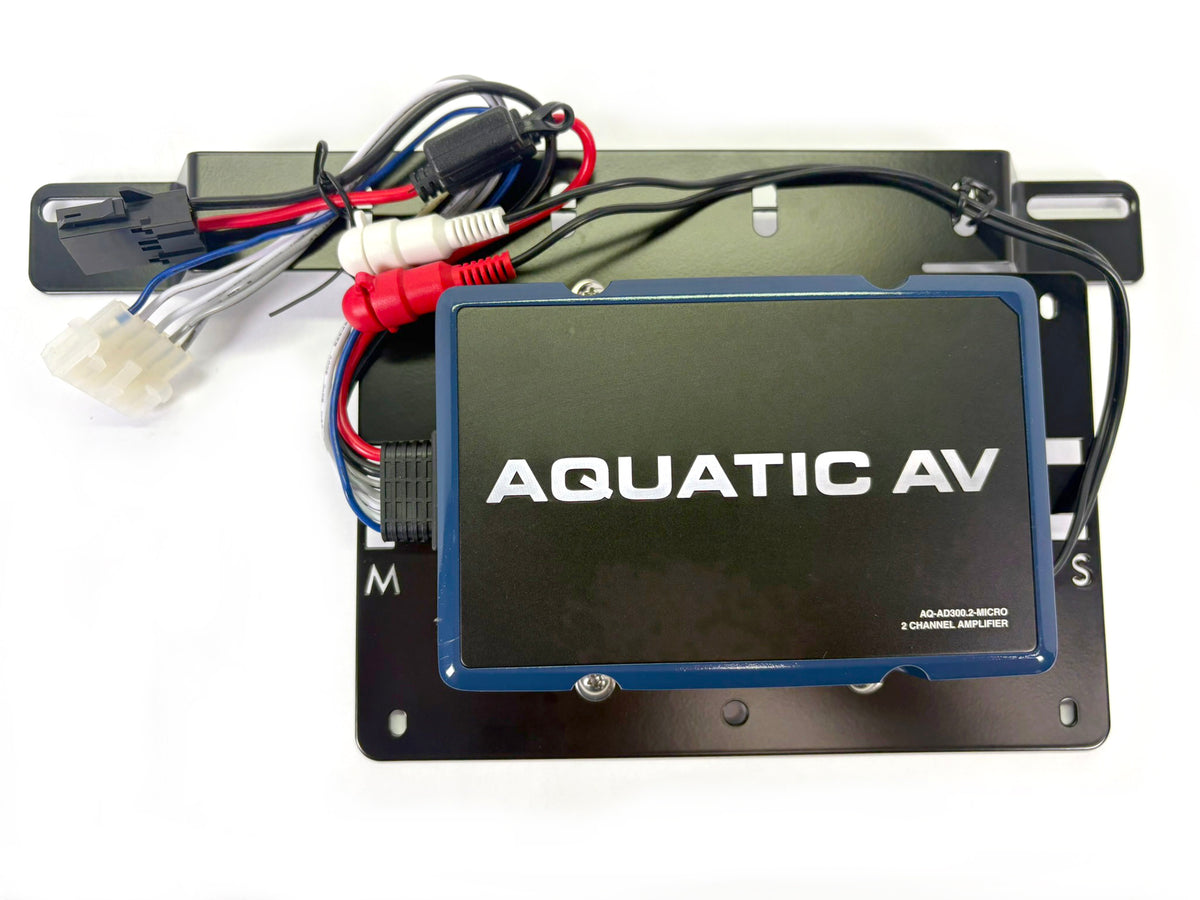

Built Around the Aquatic AV AD300.2

The Aquatic AV AD300.2 is a compact marine-grade digital Class D amplifier with IP65 water resistance, RCA low-level inputs and high-level speaker inputs with auto-detect.

Adjustable HPF, LPF and full-range crossover modes allow the amplifier to be configured for the speakers being used, while the crossover frequency is adjustable from 40Hz to 400Hz. Adjustable bass boost is also available from 0 to 12dB at 85Hz.

• 2 × 100 watts RMS at 4 ohms
• 2 × 150 watts RMS at 2 ohms
• 300 watts RMS total output at 2 ohms
• Bridgeable 2-channel design
• Stable at 2 ohms and 4 ohms in stereo operation
• IP65 water-resistant construction
• RCA low-level inputs
• High-level speaker inputs with auto-detect
• Adjustable HPF, LPF and full-range crossover modes
• Adjustable crossover frequency from 40Hz to 400Hz
• Adjustable bass boost from 0 to 12dB at 85Hz

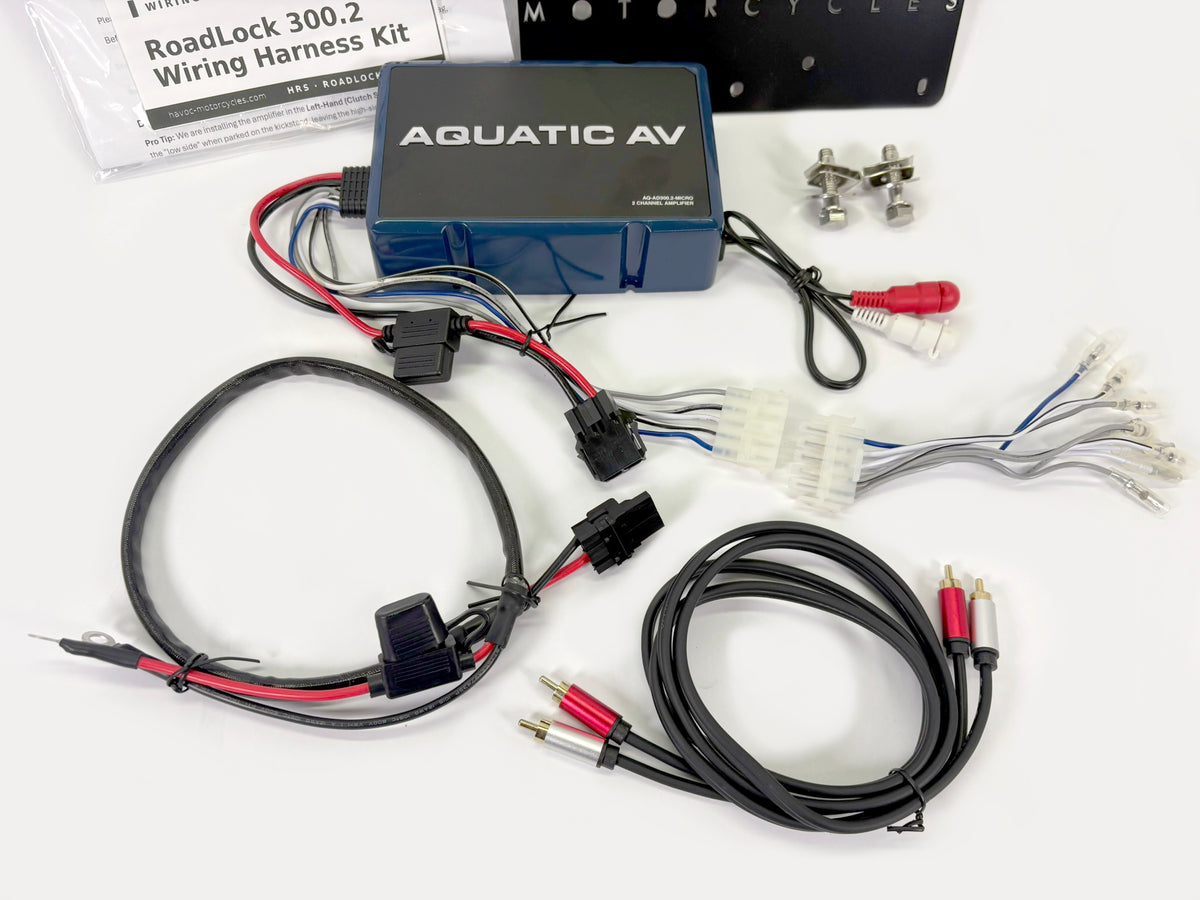

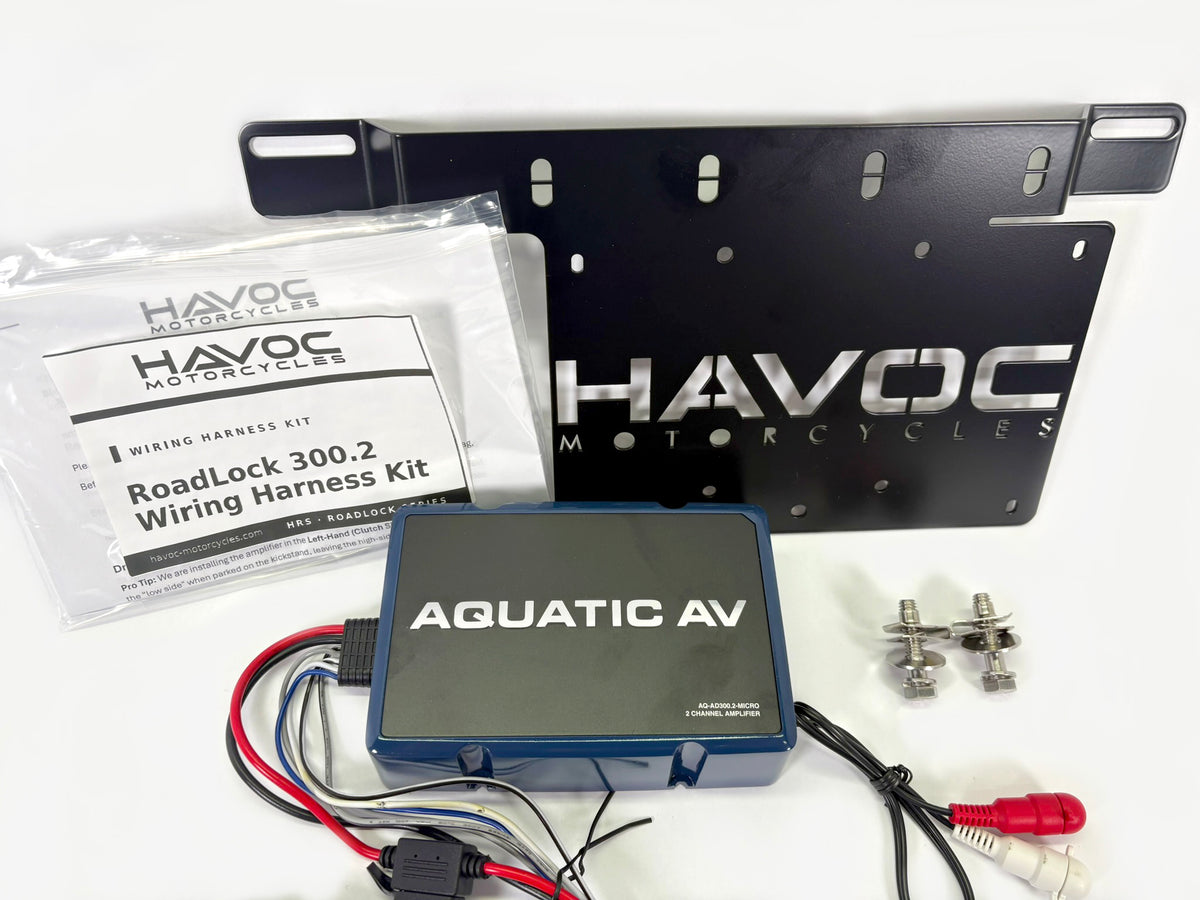

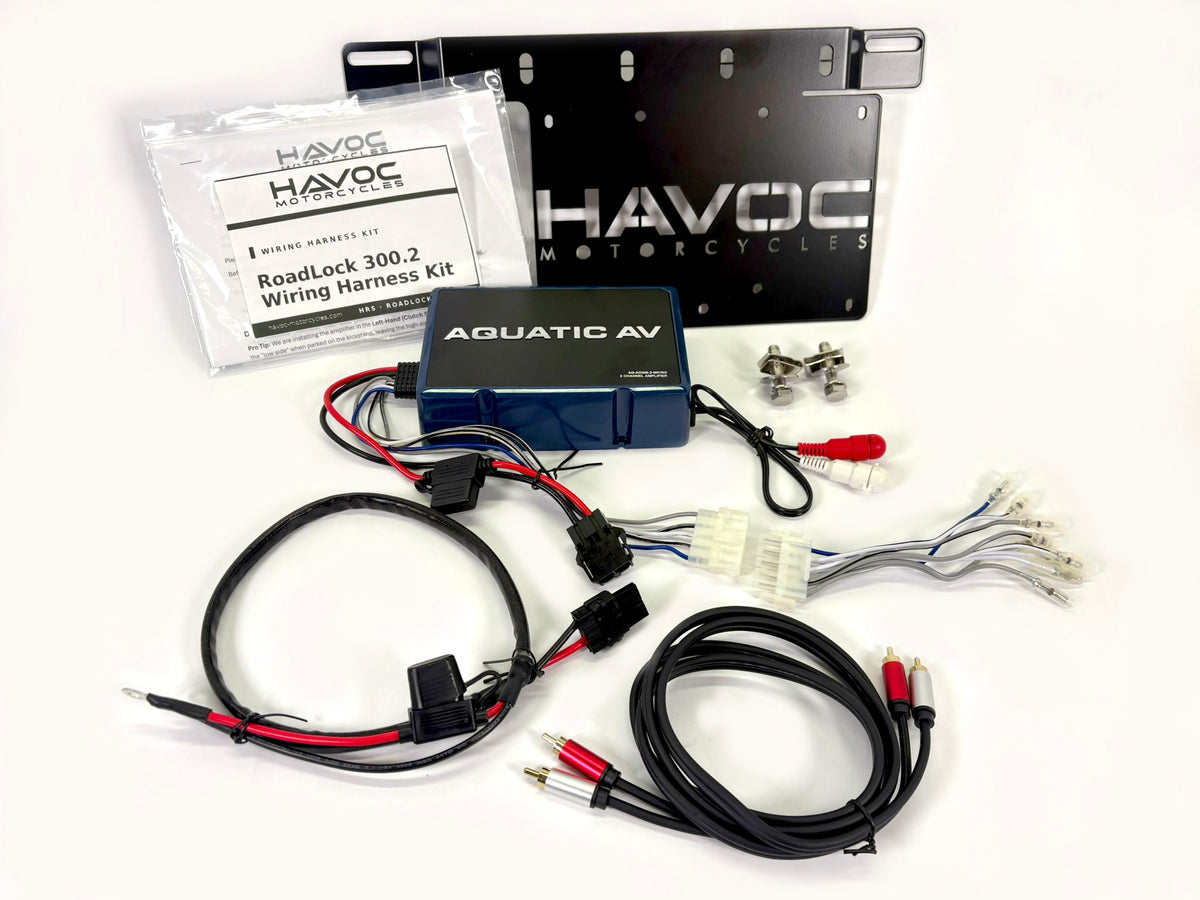

What's in the Box

• Aquatic AV AD300.2 two-channel digital amplifier
• Havoc Road-Lock amplifier mounting bracket for Harley-Davidson Touring models
• Road-Lock 300.2 8-gauge marine-grade wiring harness with 80A HRB High-Current Connector
• Saddlebag security hardware
• Road-Lock amplifier bracket mounting hardware
• Marine-grade RCA cable
• Marine-grade RCA Y-connectors
• Amplifier trigger wire
• Additional amplifier connection wiring and installation components
• Cable ties
• Installation instructions

Compatibility

The ROADLOCK-300.2 is designed for compatible Harley-Davidson Touring motorcycles with hard saddlebags, as well as Harley-Davidson Road King Classic models equipped with soft saddlebags. It is also used in selected Havoc Roar Stereo systems for Harley-Davidson Road King models.
