Havoc Road-Lock AD1200.4 Saddlebag Amplifier Kit

Amplifier: Aquatic AV AD1200.4
Output: Up to 1,200 Watts RMS
Channels: 4
Application: Compatible Harley-Davidson Touring Motorcycles

The Havoc Road-Lock AD1200.4 is a complete high-power saddlebag amplifier system designed to install the Aquatic AV AD1200.4 four-channel Class D amplifier in compatible Harley-Davidson Touring motorcycles.

This is not a universal amplifier bracket with some wire thrown in the box. The Road-Lock AD1200.4 is built as a complete system for riders assembling a serious high-output Harley-Davidson audio system. It combines the Aquatic AV AD1200.4 amplifier with Havoc's custom Road-Lock saddlebag mounting bracket, a heavy-duty 4 AWG flexible silicone-insulated power harness, 100A fuse protection, high-current connectors, marine-grade RCA signal cables, trigger wiring, mounting hardware and saddlebag security hardware.

A Purpose-Built Harley Saddlebag Amplifier System

Installing a high-power amplifier inside a Harley-Davidson saddlebag requires more than simply finding somewhere to bolt it down. The amplifier must remain securely mounted under vibration, the power wiring must be capable of supporting the electrical load, and the installation needs to remain organized inside a space already limited by the motorcycle and its luggage requirements.

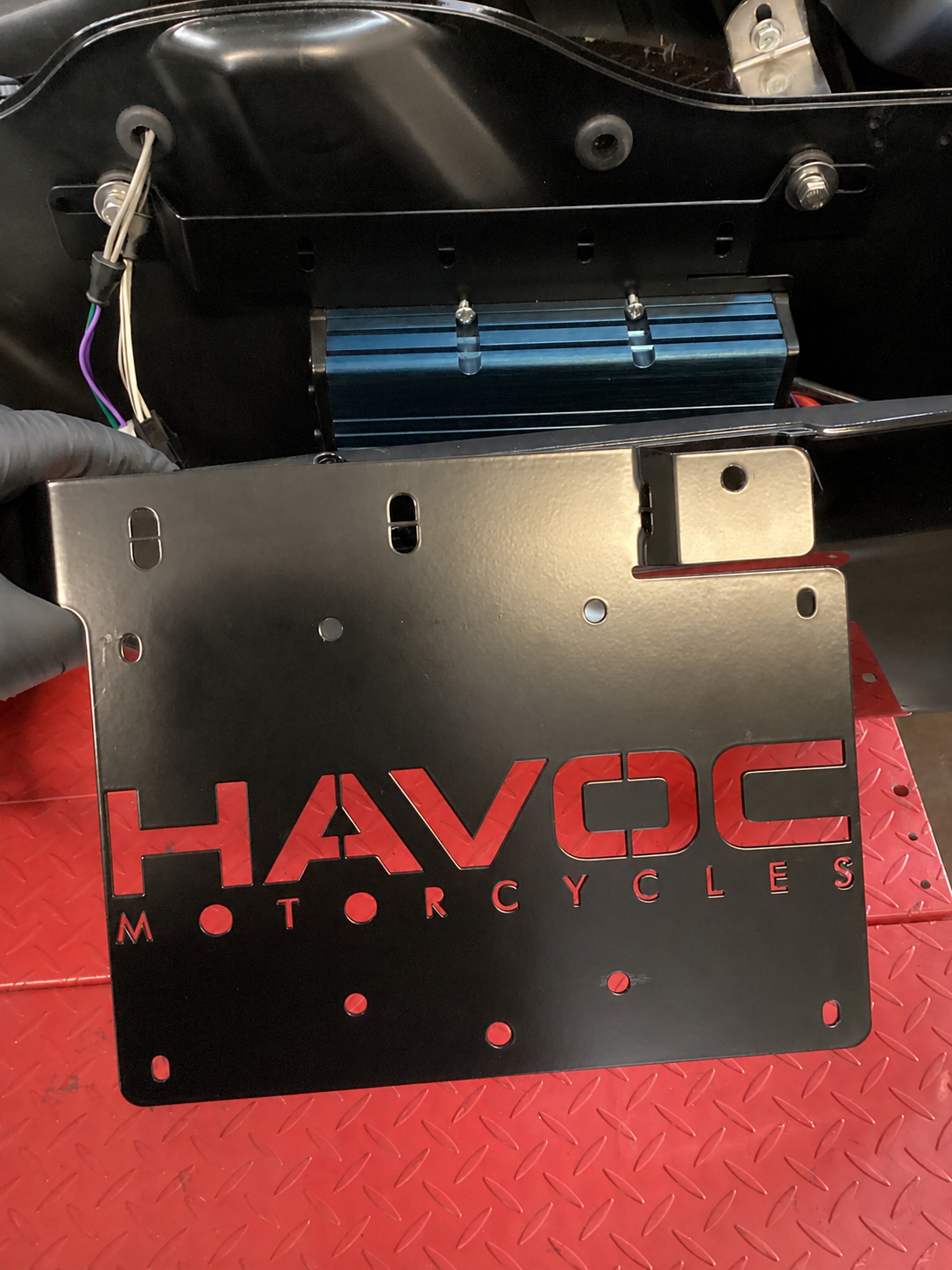

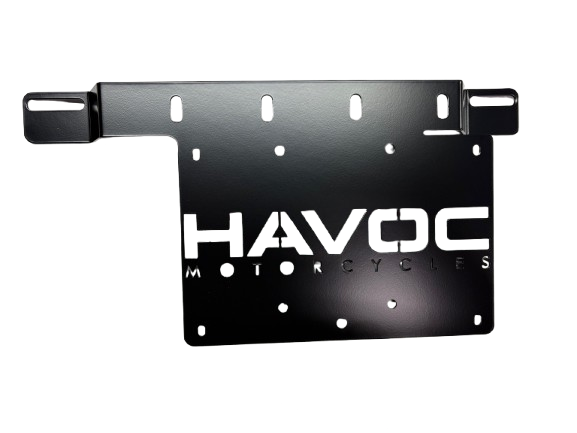

The Havoc Road-Lock Saddlebag Amplifier Bracket provides a dedicated mounting platform for the Aquatic AV AD1200.4. CNC-bent and laser-cut from 14-gauge steel, the bracket helps keep the amplifier securely mounted while providing an organized foundation for the wiring and connections.

The Havoc logo is laser-cut directly into the bracket, reducing unnecessary material while opening airflow behind the amplifier to support heat management.

The system also includes stainless saddlebag security hardware designed as a theft-deterrent upgrade for compatible Harley-Davidson Touring saddlebags using quick-release quarter-turn-style fasteners. When your saddlebag contains a high-power amplifier and expensive audio equipment, making it less convenient for someone to remove the bag is simply good sense.

Intelligent Cable Management

A high-power saddlebag amplifier installation can involve substantial power, ground, signal, trigger and speaker wiring. That wiring should not be left hanging beneath the amplifier or lying across the bottom of the saddlebag.

The Havoc Road-Lock bracket incorporates intelligent cable management at the top of the amplifier mount, providing a dedicated area to route and organize the amplifier wiring. This keeps the cable connections above the floor of the saddlebag rather than allowing wires to hang beneath the amplifier or become buried underneath whatever you carry in the bag.

Power, ground, RCA, trigger and speaker wiring can be routed neatly through the upper cable-management area, helping to keep wires off the bottom of the saddlebag, protected from damage and out of your usable storage space.

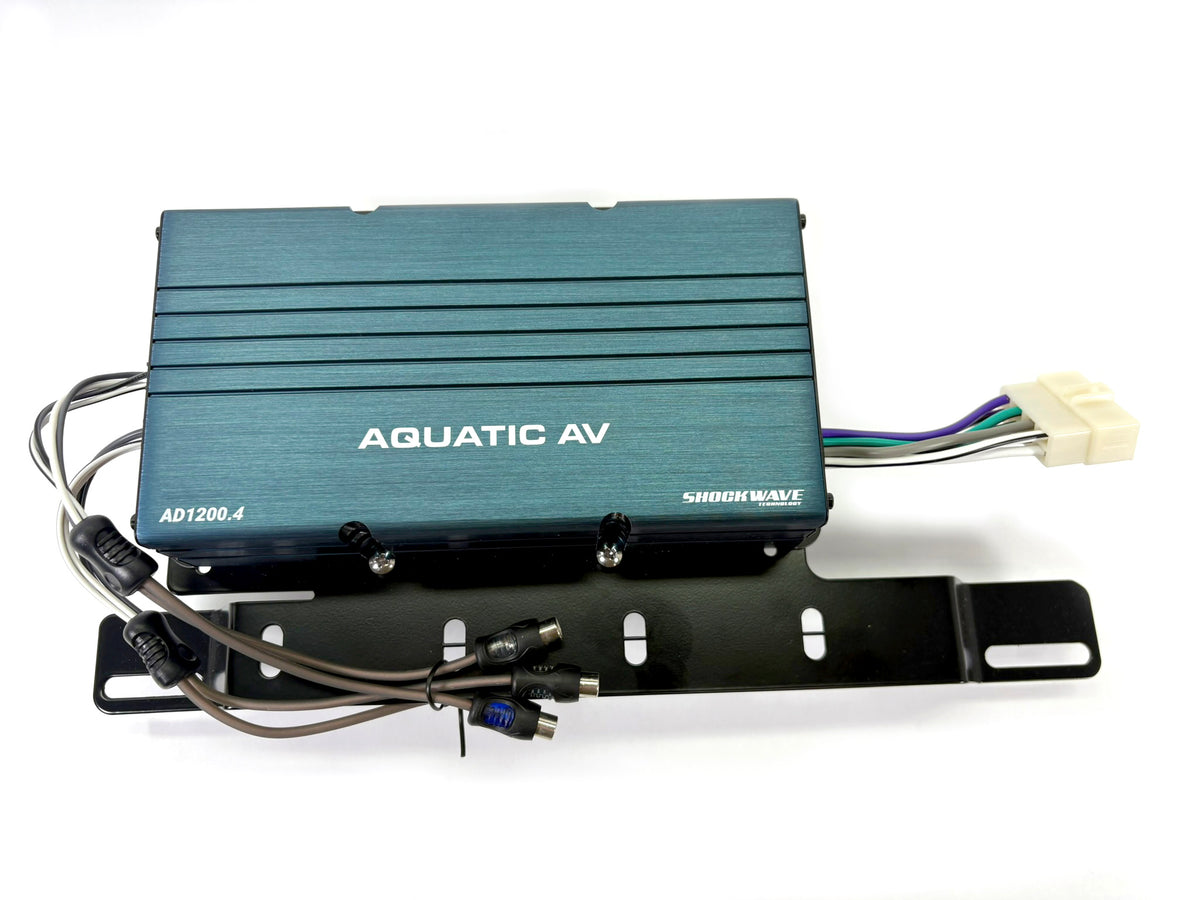

Built Around the Aquatic AV AD1200.4

At the heart of the system is the Aquatic AV AD1200.4, a four-channel Class D digital amplifier designed for high-output powersports and motorcycle audio applications.

• 4 × 190 watts RMS at 4 ohms
• 4 × 300 watts RMS at 2 ohms
• 760 watts RMS total at 4 ohms
• 1,200 watts RMS total at 2 ohms

With a 2-ohm minimum load capability, the AD1200.4 provides considerably more headroom than a conventional motorcycle amplifier and is well suited to high-output four-speaker and larger custom audio systems.

• IP65 environmental protection
• 9–16V DC operating range
• Frequency response of 20Hz–20kHz
• 90dB signal-to-noise ratio
• THD of 0.5% or less
• Efficiency greater than 80%
• Overload and thermal protection
• Separate front and rear gain controls
• Separate front and rear crossover controls
• HPF, LPF and full-range operation
• REM, DC and VOX turn-on modes
• Clipping indication
• Two- or four-pair input configuration

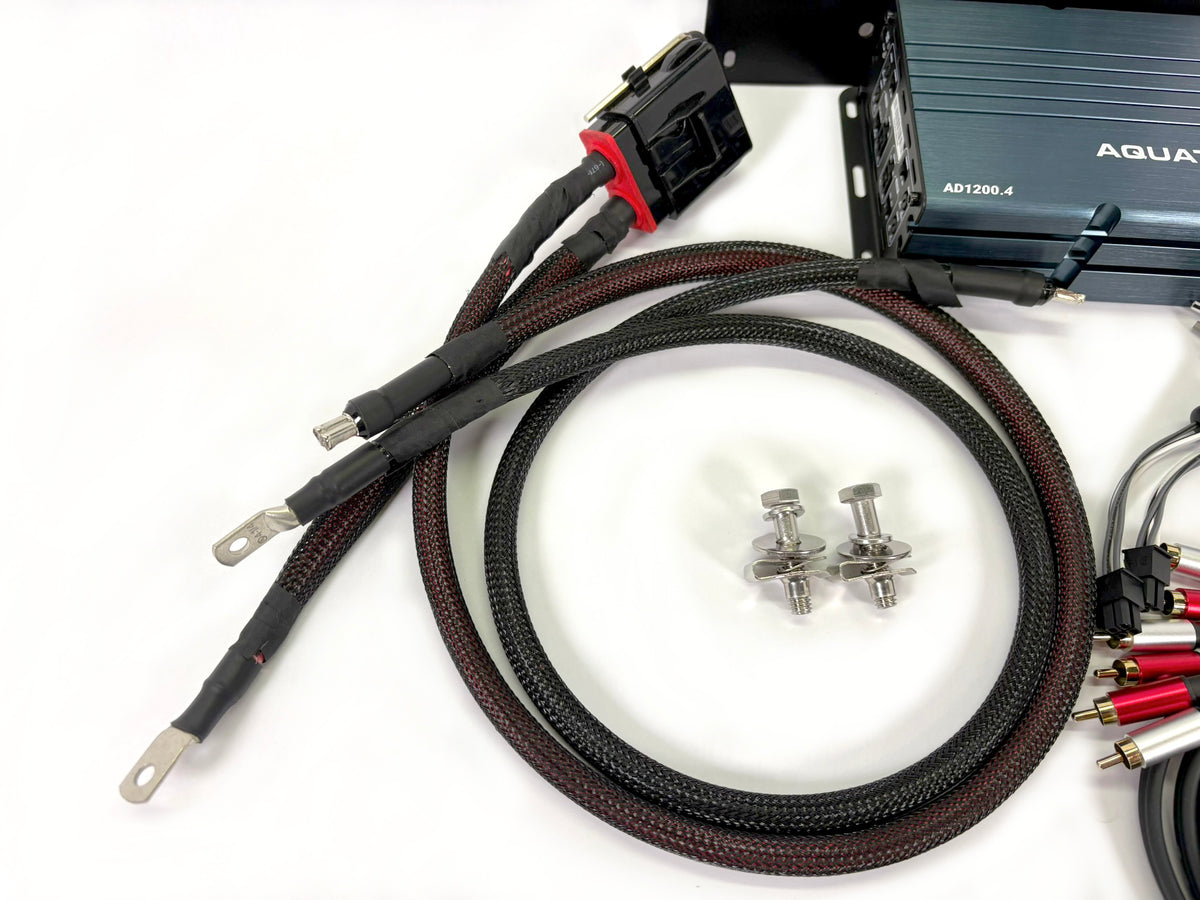

Heavy-Duty 4 AWG Power Harness

A 1,200-watt amplifier demands a serious power system.

The Road-Lock AD1200.4 includes a heavy-duty 4 AWG silicone-insulated power harness, selected specifically for the challenge of routing large-gauge cable through a motorcycle.

Conventional heavy-gauge power cable can be stiff and awkward to route around a motorcycle frame, under the fuel tank and through tight spaces. The ultra-flexible silicone jacket makes the Road-Lock harness substantially easier to route neatly, allowing the cable to bend through tighter spaces without constantly fighting to spring back straight.

That means a cleaner installation and considerably less wrestling with heavy power cable during installation.

• 4 AWG flexible silicone-insulated power cable
• 100A fuse protection at the battery
• Anderson-style high-current connectors
• Heavy-duty connections designed for the electrical demands of the AD1200.4

Build Your Harley Audio System Your Way

Run Four High-Power Speakers

Use all four channels independently for:

• 4 × 190 watts RMS at 4 ohms
• 4 × 300 watts RMS at 2 ohms

With up to 1,200 watts RMS available across four channels, the AD1200.4 is ideal for high-output systems using combinations of fairing, highway bar and saddlebag speakers.

Build a Larger Multi-Speaker System

The amplifier's 2-ohm minimum load capability allows each channel to support an appropriate 2-ohm speaker load.

This makes the AD1200.4 suitable for larger custom systems where the objective is not simply to add an amplifier, but to provide substantially more power and output across the motorcycle.

Tune Front and Rear Speakers Independently

The AD1200.4 features independent front and rear crossover and gain controls. Each channel pair can be configured for:

• High-pass operation
• Low-pass operation
• Full-range operation

This gives the installer the flexibility to tune different sections of the audio system independently, allowing one pair of channels to operate differently from another where the speaker configuration requires it.

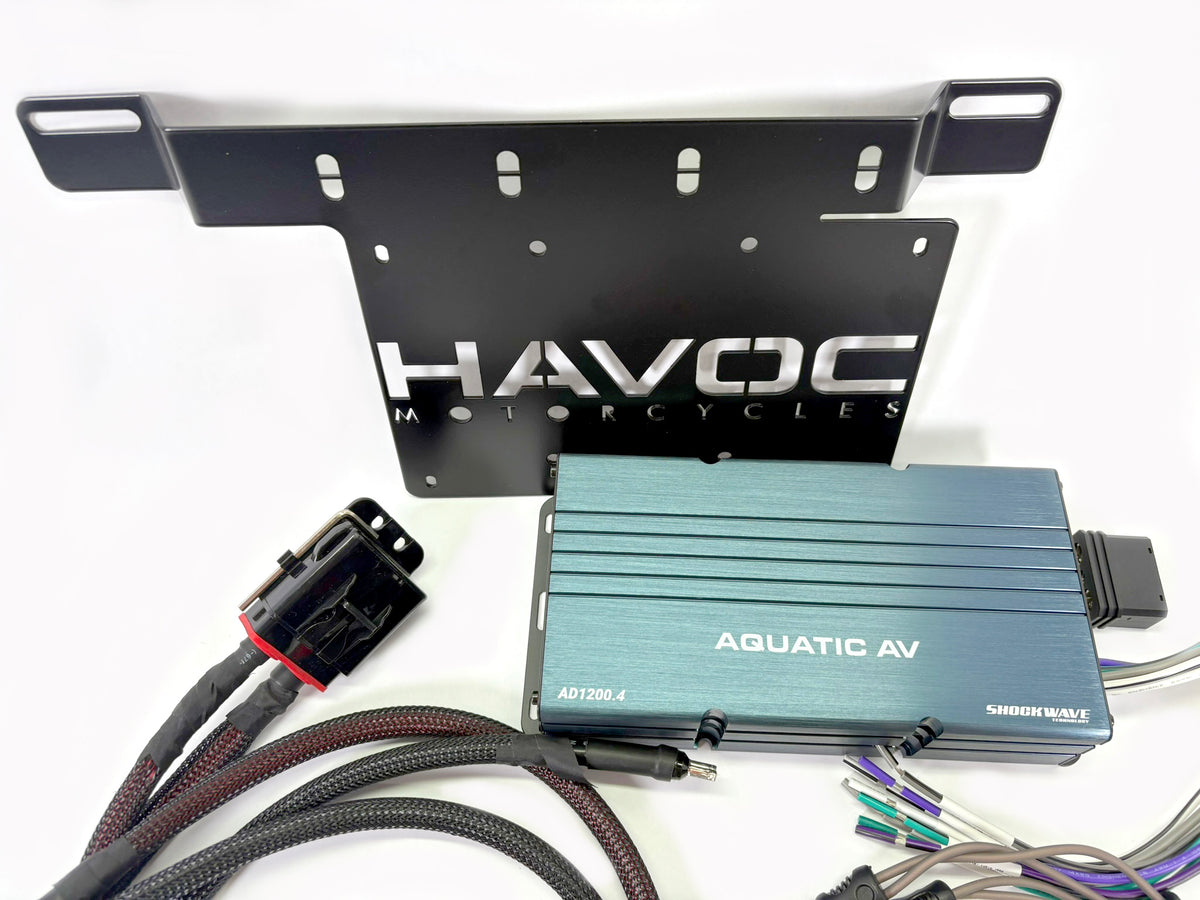

Road-Lock 1200.4 Complete Installation System

The Road-Lock AD1200.4 is designed to eliminate the need to assemble a high-power saddlebag amplifier installation piece by piece.

Instead of sourcing a bracket, heavy-gauge power cable, fuse protection, connectors, signal wiring and mounting hardware separately, the major installation components are supplied as part of one integrated system.

Everything is selected to work together around the requirements of the Aquatic AV AD1200.4 and a compatible Harley-Davidson Touring motorcycle.

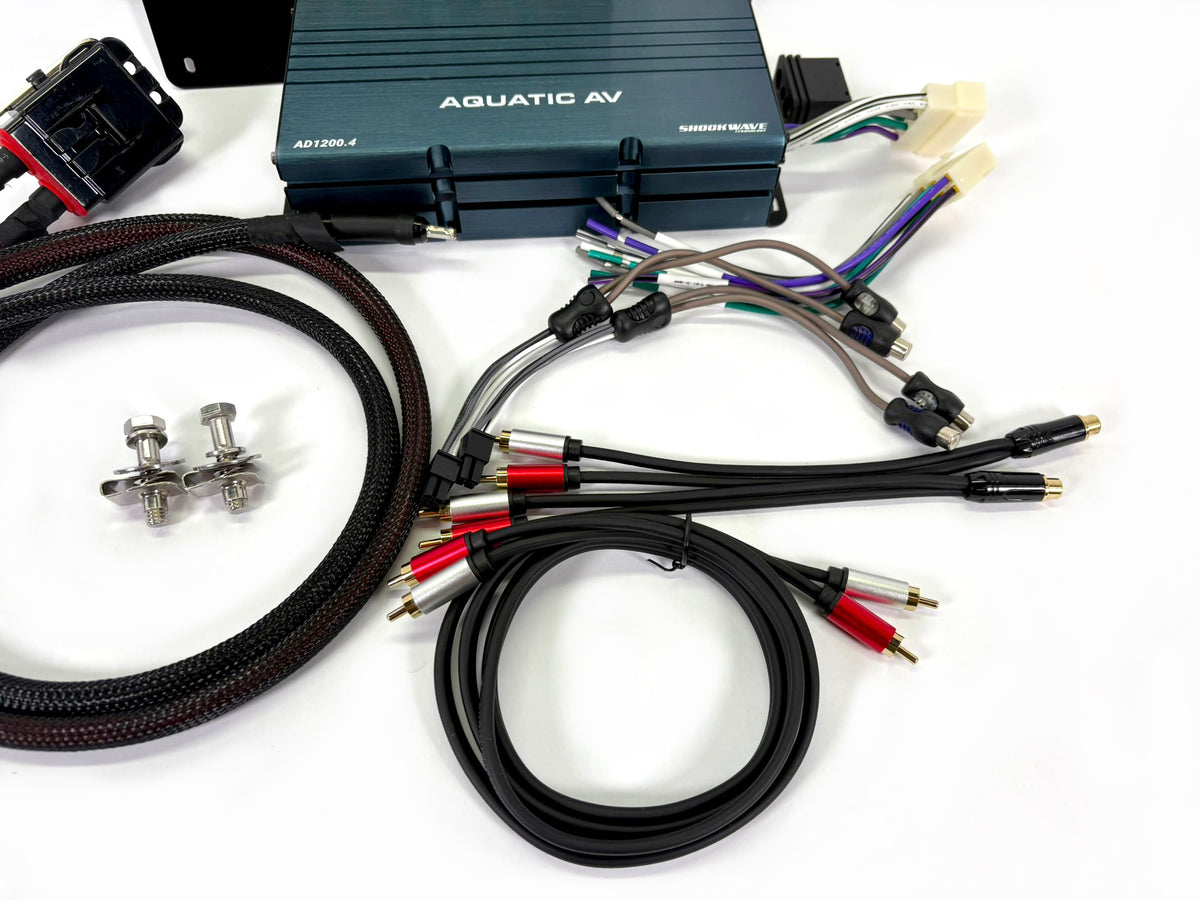

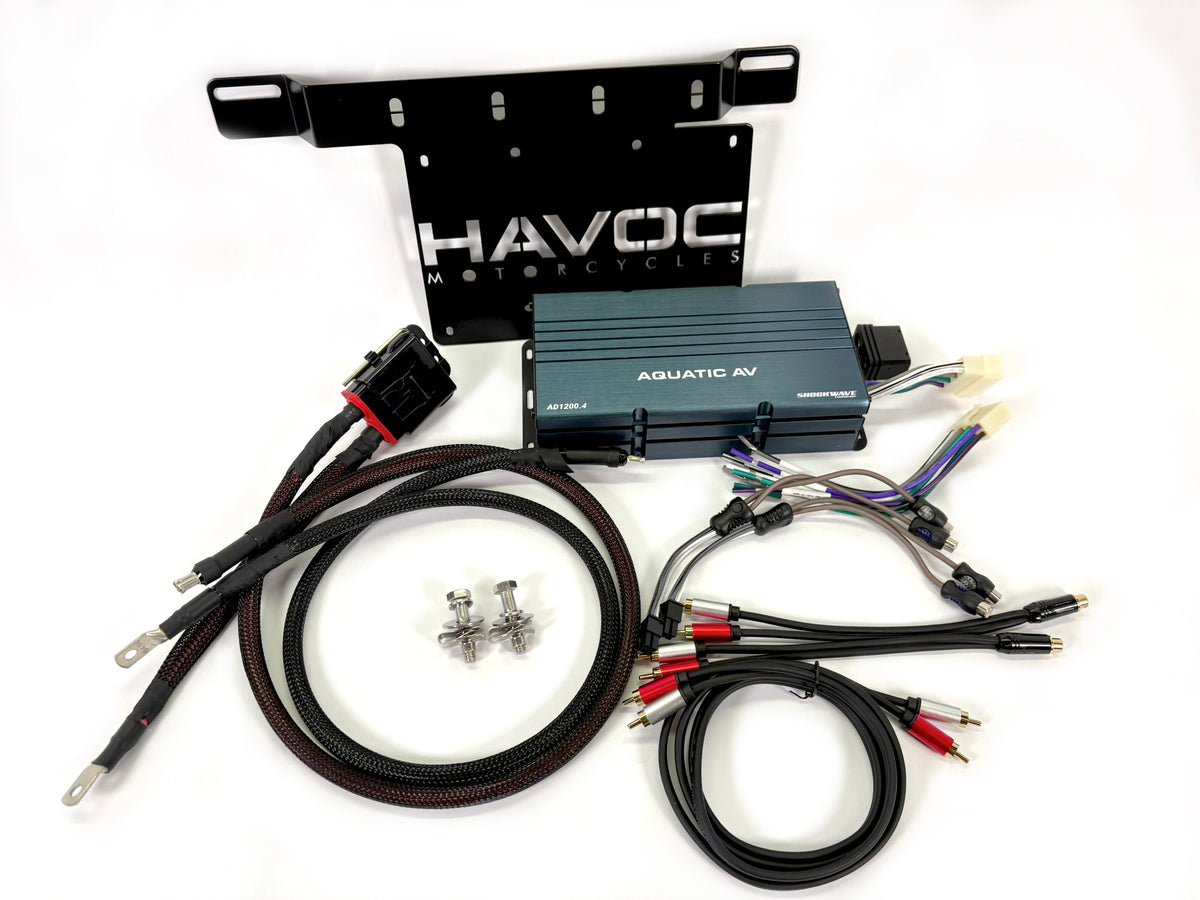

What's Included

• Aquatic AV AD1200.4 four-channel Class D digital amplifier
• Havoc Road-Lock saddlebag amplifier mounting bracket
• Road-Lock 1200.4 heavy-duty 4 AWG power harness
• Flexible silicone-insulated power wire
• 100A battery fuse and fuse protection
• Anderson-style high-current power connectors
• Saddlebag security hardware
• Road-Lock amplifier bracket mounting hardware
• Marine-grade RCA signal cable
• Marine-grade RCA Y-connectors
• Amplifier trigger wire
• Additional amplifier connection wiring and installation components
• Cable ties
• Installation instructions

Harley-Davidson Touring Compatibility

The Havoc Road-Lock AD1200.4 is designed for compatible Harley-Davidson Touring motorcycles with hard saddlebags, as well as Harley-Davidson Road King Classic models equipped with soft saddlebags.
