Havoc Roar 480.2 LF Complete Road King Lower Fairing Stereo System

1998–2025 Harley-Davidson Road King

480W NEO | LOWER FAIRING | CHROME OR BLACK NACELLE

AN ENGINEERED SYSTEM SPECIFICALLY FOR THE ROAD KING

BUILT AS ONE SYSTEM. ENGINEERED FOR ONE MOTORCYCLE.

The Havoc Roar 480.2 LF Complete Road King Stereo System is a purpose-built 480W audio system for 1998–2025 Harley-Davidson Road King motorcycles equipped with compatible lower fairings.

Lower fairings provide valuable leg protection from wind and road conditions. The 480.2 LF is for riders who want that protection and serious sound on their motorcycle—without adding speaker pods to their highway bars.

At the center is the Aquatic AV GP1 gauge stereo, installed into a Havoc billet Road King nacelle cap matched to your selected model-year configuration. The GP1 feeds two Aquatic AV HS116 6.5" 480W NEO speakers mounted in your lower fairings, powered by an Aquatic AV AD500.4 four-channel amplifier in bridged mode.

The amplifier mounts inside your saddlebag using the Havoc Road-Lock amplifier bracket. System wiring, connectors, mounting hardware for the supplied components and installation instructions are included.

CHOOSE YOUR NACELLE FINISH

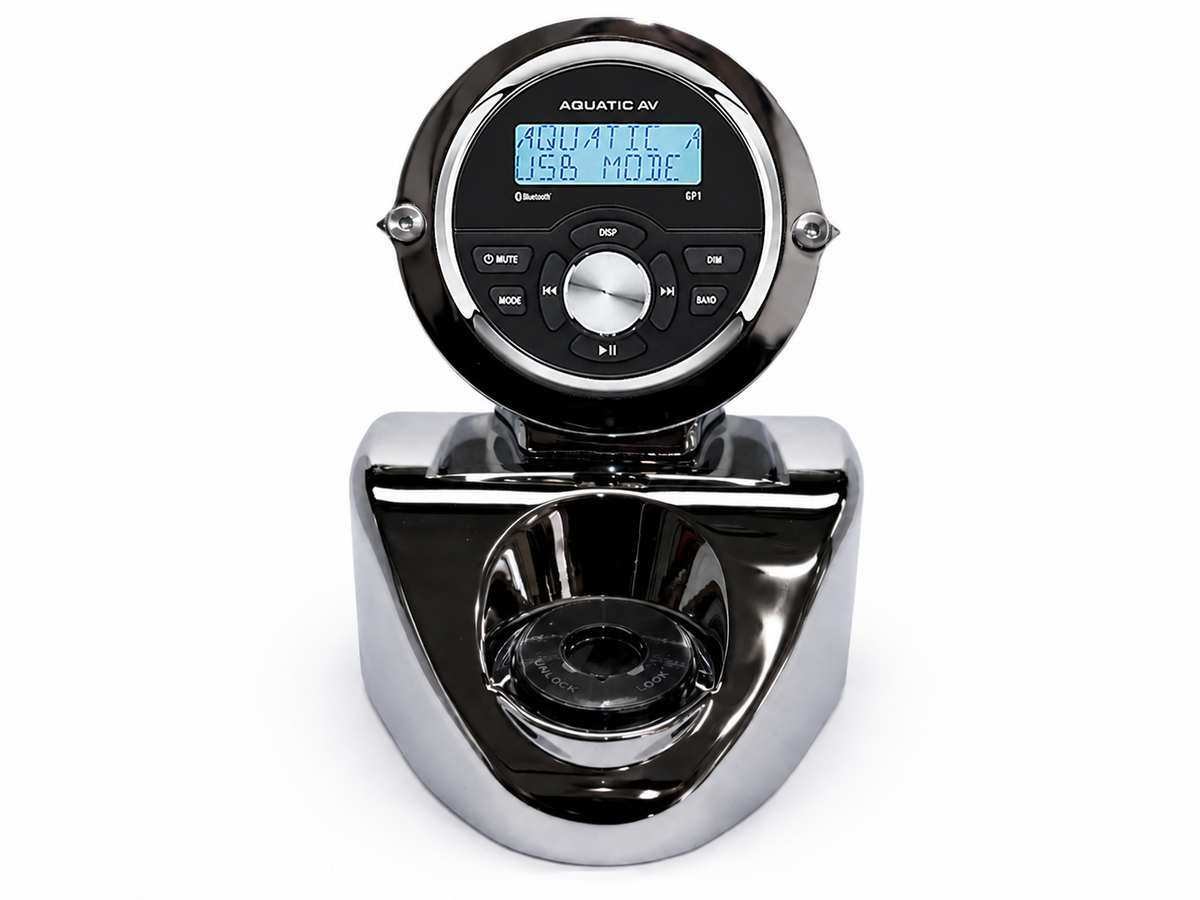

CHROME

Our triple-plated chrome Havoc billet nacelle cap complements the classic bright-metal styling of your Road King.

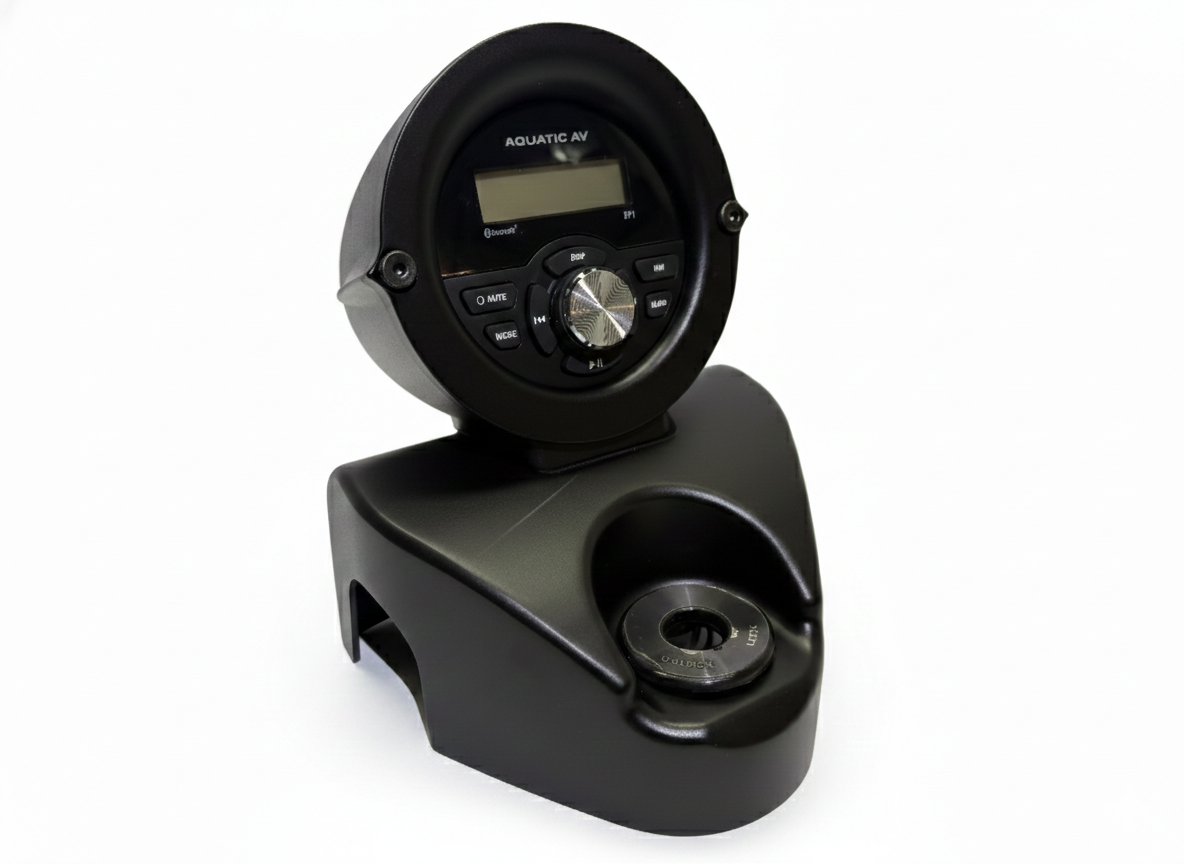

BLACK POWDERCOAT

Our black powder-coated Havoc billet nacelle cap complements the darker factory trim of the Road King Special and other blacked-out builds.

Finish selection applies to the Havoc nacelle cap. Lower fairing speaker pods and grilles are customer supplied.

THE HAVOC ROAR SYSTEM

Every major component has been selected as part of the same system architecture. This isn't a collection of unrelated aftermarket parts. It's an engineered audio system designed to work together on the Road King.

AQUATIC AV GP1 — THE CONTROL CENTER

The system starts where the rider interacts with it: the Aquatic AV GP1 gauge stereo.

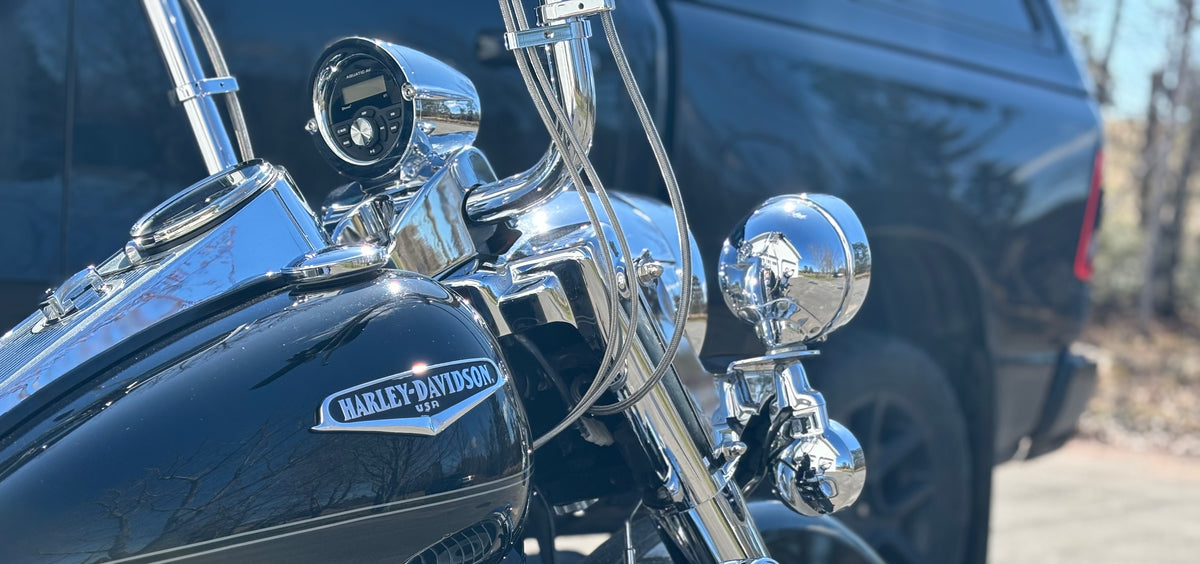

Rather than hanging a universal stereo from the handlebars or adding an upper fairing, Havoc integrates the GP1 directly into a purpose-built billet Road King nacelle cap.

The correct Havoc nacelle cap is supplied for the selected model-year configuration, giving the GP1 a clean, integrated location directly in front of the rider.

• Bluetooth audio streaming
• AM/FM radio
• USB connectivity and device charging
• MP3 playback
• AUX input
• RCA pre-out for external amplification
• 288W maximum internal amplifier power
• Class A/B internal amplifier
• 2-ohm stable
• Monochrome TFT display with blue backlight
• Rotary control and physical buttons
• IP65 water-resistant construction

AQUATIC AV HS116 — 6.5" LOWER FAIRING NEO SPEAKERS

The front stage uses two Aquatic AV HS116 480W NEO speakers, installed in compatible speaker pods in your motorcycle's lower fairings.

Lower fairings help shield your legs from wind while providing a forward location for powerful audio. The NEO speakers offer high output and an efficient neodymium motor design.

USE THE LOWER FAIRINGS YOU ALREADY HAVE

There are many factory and aftermarket lower fairing systems, with different speaker pod shapes, mounting arrangements and grille designs. Rather than supply a pod that may not fit your motorcycle, we leave the choice of pods and grilles to you.

AQUATIC AV AD500.4 — DEDICATED SYSTEM AMPLIFICATION

The HS116 speakers are powered by a dedicated Aquatic AV AD500.4 four-channel digital amplifier, configured in bridged mode.

The amplifier is an integral part of the system, providing dedicated power to drive the lower fairing speaker pair.

• Four-channel amplifier configured in bridged mode
• Two bridged output channels driving the NEO speaker pair
• IP65 water-resistant construction
• RCA low-level inputs
• High-level speaker inputs with auto-detect
• Adjustable HPF, LPF and full-range crossover modes
• Adjustable crossover frequency from 40Hz–400Hz
• Adjustable bass boost

ROAD-LOCK SADDLEBAG AMPLIFIER MOUNT

The AD500.4 is installed using the Havoc Road-Lock saddlebag amplifier bracket.

The bracket is CNC-bent and laser-cut from 14-gauge steel and designed specifically around the Aquatic AV amplifier.

The bracket incorporates integrated cable management, keeping power, signal, trigger and speaker wiring organized at the top of the mount rather than allowing cables to hang beneath the amplifier or lie loose on the bottom of the saddlebag.

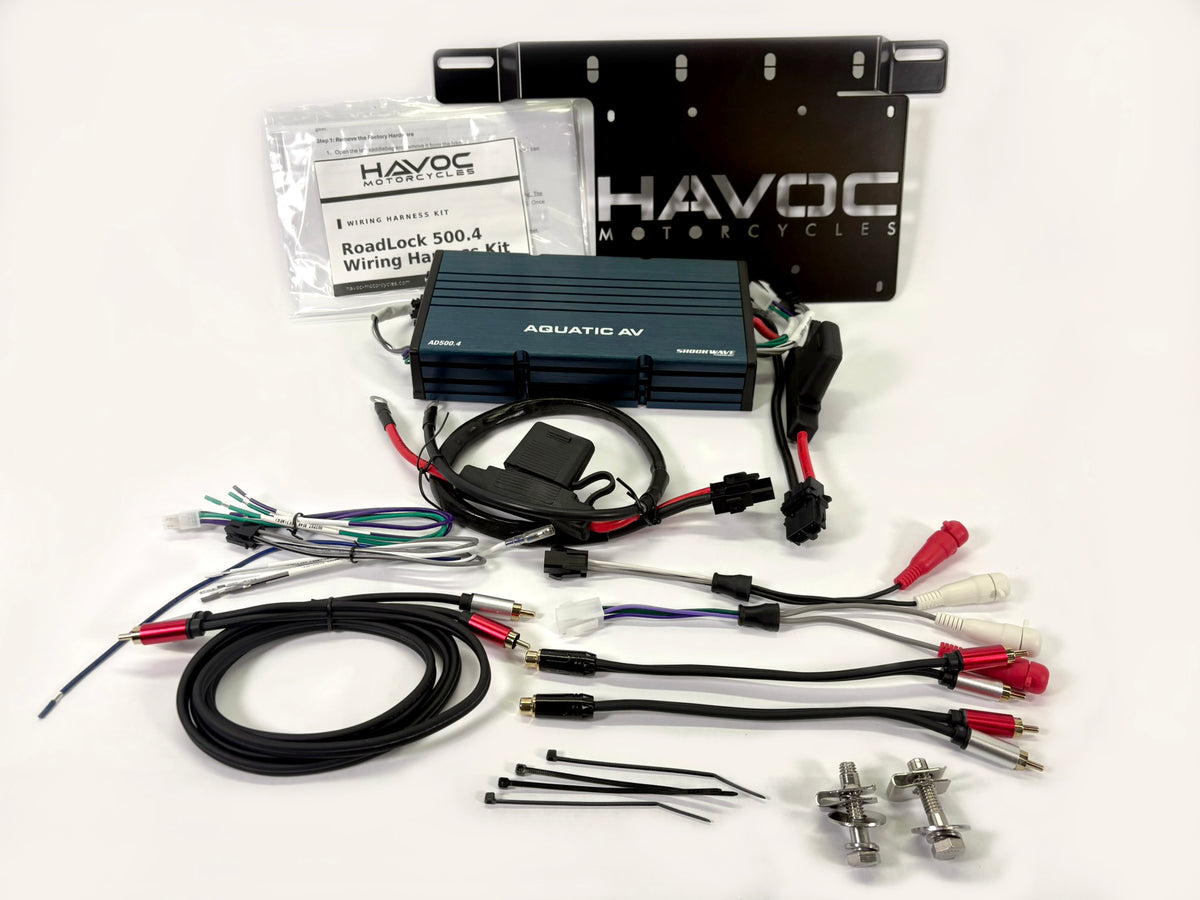

COMPLETE MEANS COMPLETE — FOR THE AUDIO SYSTEM

We supply the stereo, speakers, amplifier, mounting bracket, wiring, connectors and installation hardware for the Havoc components. You supply the lower fairing-specific speaker pods and grilles to suit your motorcycle.

FITMENT

Designed for applicable Road King motorcycles retaining the stock-style headlight nacelle arrangement and equipped with lower fairings capable of accepting suitable 6.5" speaker pods.

WHY BUY THE 480.2 LF SYSTEM?

Our Road King systems are thought through as integrated audio packages.

• The GP1 integrates into a model-year-specific Havoc billet nacelle cap.
• Two HS116 480W NEO speakers provide a high-output front stage in your lower fairings.
• The AD500.4 amplifier is bridged to drive the speaker pair.
• The Road-Lock bracket gives the amplifier a purpose-built saddlebag mount.
• System wiring and installation hardware for the supplied components are included.
• You choose the speaker pods and grilles that actually fit your lower fairings, rather than paying for highway bar pods you do not need.
