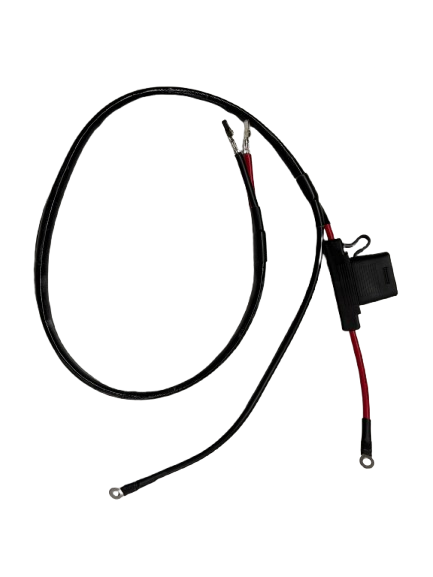

HM-600A Amplifier Power Harness for Aquatic AV AD500.4 600 Watt Amplifier (8AWG)

The HM-600A Amplifier Power Harness is purpose-built to power the Aquatic AV AD500.4 (600W 4-channel) amplifier in a saddlebag with a clean, reliable battery connection.

We spec UL 1015 wire in 8 AWG to keep voltage drop low and performance consistent under real riding conditions. The harness has ring terminals on power and ground for a secure connection at the battery, an inline 50A fuse, and the correct length to route cleanly from the battery to the saddlebag-mounted AD500.4.

At the amplifier end, it uses the waterproof HRB connector used by Aquatic AV amps, with the terminal already crimped on. For easier installation, the connector body is packed separately so the lead can be fed through the included grommet into the saddlebag first, then the connector is assembled and plugged into the AD500.4 for a clean, watertight finish.

Component Notes

• 8 AWG UL 1015 power/ground conductors

• Inline 50A fuse located approximately 10 cm from the battery for protected, serviceable power

• Battery ring terminals for solid power + ground

• Correct length: battery to saddlebag amplifier location (sized for AD500.4 installs)

• Waterproof HRB connector compatible with Aquatic AV amplifier power plug

• Connector body packed separately for easy routing through supplied grommet, then final assembly at the amp. Grommets are included for both 2013-earlier and 2014-later saddlebag panel thicknesses.
