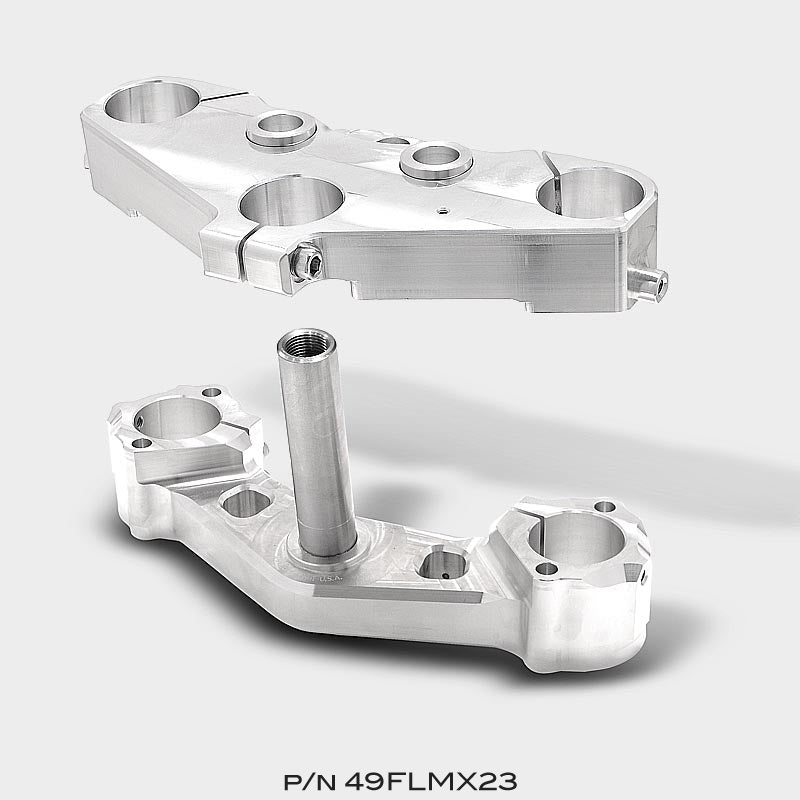

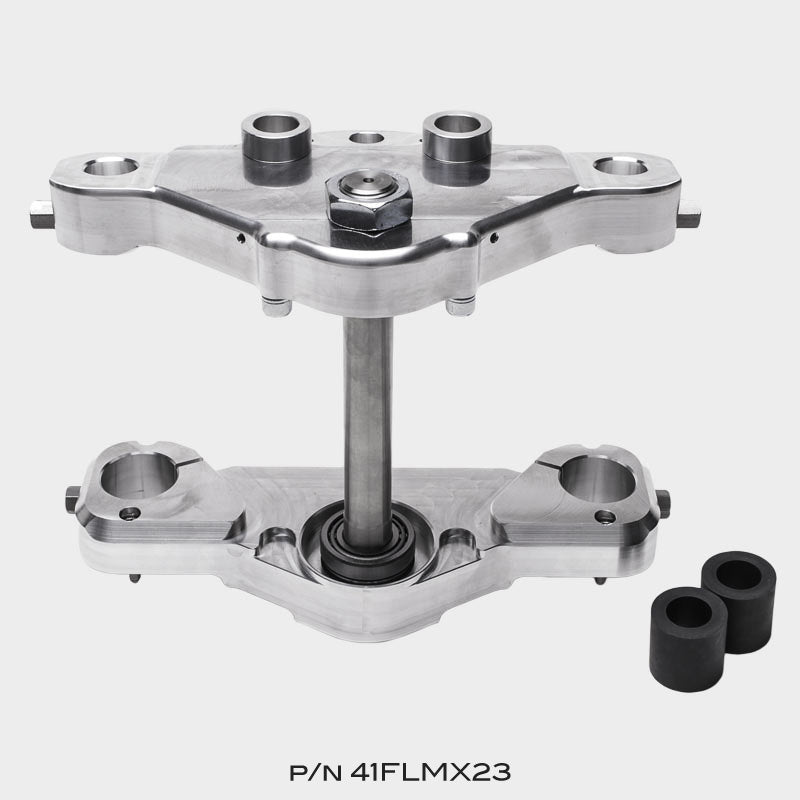

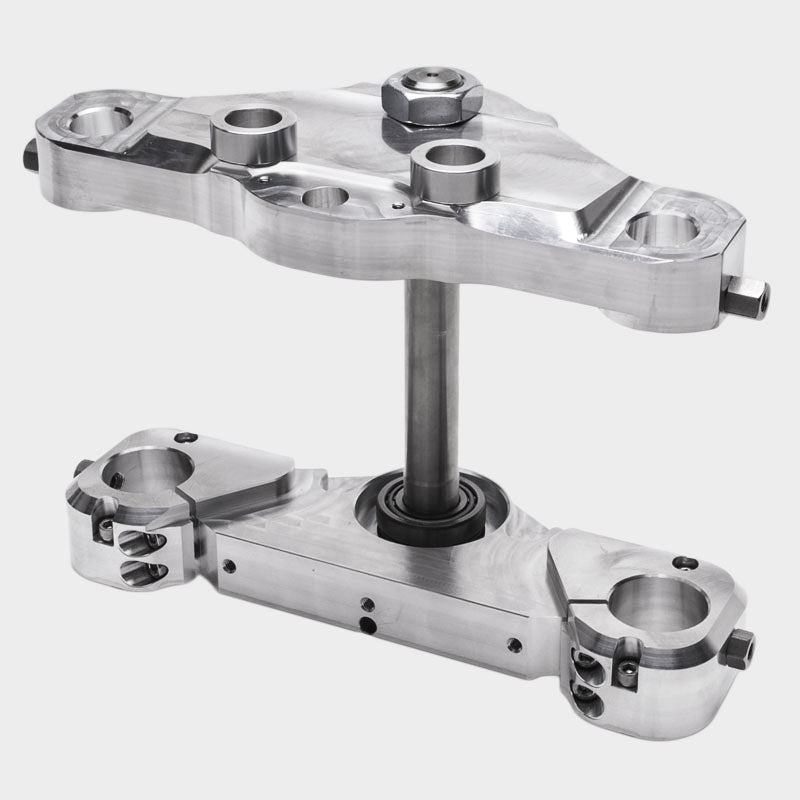

X-23 ® TOURING MODEL TRIPLE TREES FOR 21-180 OR 23-130

X-23 ® TOURING MODEL TRIPLE TREES FOR 21-180 OR 23-130

$1,113.84 CAD
$1,113.84 CAD
Sale Sold out
Shipping calculated at checkout.
CHOOSE OPTION (REQUIRED)

X-23 Bolt-On Triple Tree Kit

NOTE: Recommended rear wheel size for 2009-newer models is stock 16x5 or 18x5 with proper load rated 180mm tire.

HHI offers a BOLT-ON triple tree kit for a 23"x130mm or 21"x 180mm wheel/tire installation on FL touring model bikes. The design geometry of this triple tree results in a trail measurement similar to stock factory HD speciifications and provides a quick and easy, cost effective method of safely installing a 23"x130mm or 21" x 180mm wheel and tire.

Our new kit offers the following features and benefits;



  • Fits all 1987 and up FL Touring Model bikes with standard late model ignition location, both fairing and non-fairing.
  • 6 degree triple tree rake results in stock trail geometry
  • Responsive and stable handling
  • Performs as good or better than stock
  • Direct bolt-on, NO modifications necessary
  • Positions front wheel forward approximately 2"
  • Headlight angle can be adjusted without the use of a raked bezel kit
  • Does not require fork extensions and uses stock length fork covers
  • Kit includes fork travel limiters to prevent fender interference
  • Stock fork lock fully functional
  • Works with stock and custom size rear wheels
  • Available in machine or black finish
